Electric hoists represent their own machinery, strength, and toughness, while the stage is elegant, flowing, and soft, with conflicts and collisions between the two.
The stage electric hoist plays an important role in stage construction, touring exhibitions, and various inverted construction operations in numerous venues. To maintain its amazing work efficiency, i

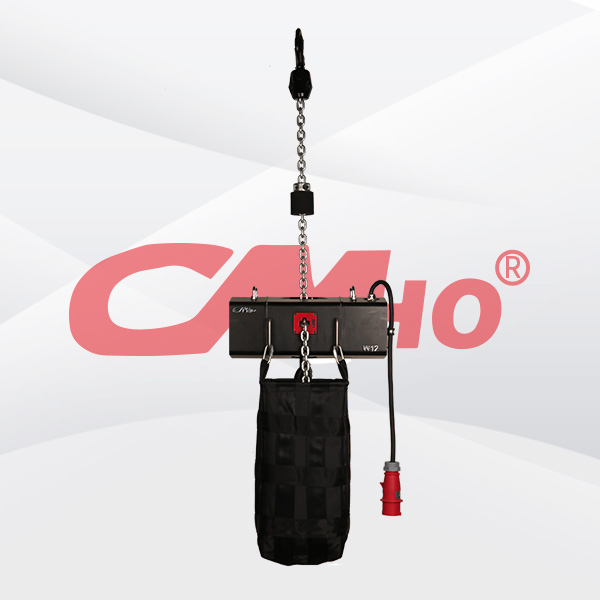

Category : W12 Stage Electric Hoist
Get a QuoteProduct Details
The stage electric hoist needs to be regularly replenished with "blood"
The stage electric hoist plays an important role in stage construction, touring exhibitions, and various inverted construction operations in numerous venues. To maintain its amazing work efficiency, it is necessary to regularly supplement "blood", which is lubricating oil. Some important parts of the stage electric hoist must be regularly lubricated with grease to ensure its smooth operation.
1、 The chain part, including the sprocket, needs regular lubrication, and the contact points between the connecting rods also need appropriate lubrication.
2、 The gearbox requires 220mm2/s of 40 ℃ gear oil with mild and high pressure additives.
3、 The exposed surfaces of the processed parts of the gourd and the exposed threaded surfaces (including screws and screw holes) that are prone to corrosion should be coated with calcium based anti rust lubricating grease or other anti rust lubricating grease.
4、 The bearing of the hook should be injected with calcium based anti rust lubricating grease to prevent rust, and checked regularly to achieve the anti rust effect and prolong use.
Only by doing a good job in lubrication and regularly supplementing the stage electric hoist with "blood" can the stage electric hoist be fully protected, delay component aging, make its operation smoother, and avoid the occurrence of various fault problems.
Gospel of lifting stage lighting equipment - stage electric hoist
Inverted electric hoists generally refer to stage electric hoists, as currently only stage electric hoists can be used upside down in the market.
The stage electric hoist is widely used for stage and venue decoration, and can lift stage lighting and other equipment. It is also specifically designed and manufactured for inverted construction such as stage performances, touring exhibitions, and installation projects. So how do they lift the lighting fixtures?
The top and bottom of the stage hanging electric hoist are respectively equipped with hooks, which are generally used to connect stage lighting fixtures. The other end can be fixed by connecting the lighting fixture crossbeam. For balance between the hoists, a synchronous controller can be used to synchronize the operation of a single or multiple hoists.
Advantages of electric hoists on stage:
1. Its surface is treated with matte black paint, and the chains are galvanized, which has an extremely beautiful appearance and will not affect the stage effect.
2. And it is made of 80 grade alloy steel material, with a safety factor of 3 times. The structure is compact and lightweight, effectively increasing the lifting stroke of up and down operations.
3. Lubricating grease is installed in the gearbox, and oil droplets will not penetrate the stage.
4. The stage electric hoist has good versatility and is suitable for use between 230V and 460V. The lifting height is based on 26 meters or 85 feet, and can also be customized according to your requirements. The height can reach 40 meters or 131 feet.
5. Using a professional chain guide wheel to release the chain smoothly without knots, the driven load guide wheel ensures that the chain is properly guided into the chain guide, which has a lifespan of more than 5 times that of other brands using nylon sheets.
