The stage electric hoist belongs to the chain type electric hoist, also known as the hoist, which is mainly used for lifting and moving the stage lights as a whole during stage construction.

Category : V7 Stage Electric Series

Get a Quote

Product Details

　　The stage electric hoist belongs to the chain type electric hoist, also known as the hoist, which is mainly used for lifting and moving the stage lights as a whole during stage construction.

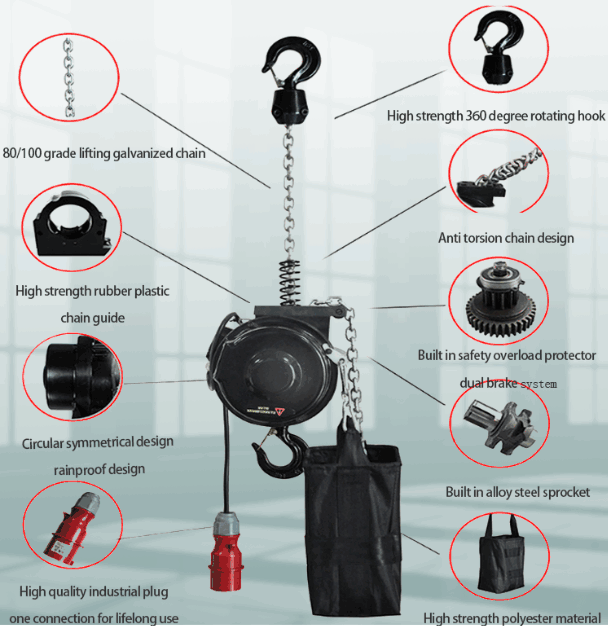

　　Features 1: Efficient, lightweight motor, asbestos free brake system, low energy consumption;

　　2. Stamped steel shell, lightweight and sturdy; Lightweight, beautiful and durable plastic chain bags;

　　3. High strength safety hook, capable of withstanding unexpected overload impacts without breaking, and only gradually deforming when overweight;

　　4. Limit switch: There is a limit switch device on both the upper and lower parts of the crane to automatically stop the motor, prevent the chain from exceeding, and ensure safety;

　　5. The steel guide chain plate formed by heat treatment is galvanized on the chain, which is not easy to rust;

　　6. Lubricating grease is installed in the gearbox to prevent oil droplets from penetrating the stage;

　　7. Dual brake system ensures safe operation, easy operation, and easy maintenance;

　　Precautions for electric hoists on stage

　　There should be no obstacles within the walking range of the operator, along the route through which heavy objects pass, and on the running track of the stage electric hoist;

　　Check the agility and reliability of the brake, the correctness and agility of the manual button action, and the reducer should have no abnormal sound;

　　Check if the upper and lower limit switches of the stage electric hoist are operating correctly;

　　Check if the hook stop nut is tightened. The hook should roll flexibly in both horizontal and vertical directions;

　　Check for significant defects in the steel wire rope, arrange it neatly on the drum, show no signs of detachment from the pulley groove, and ensure good lubrication;

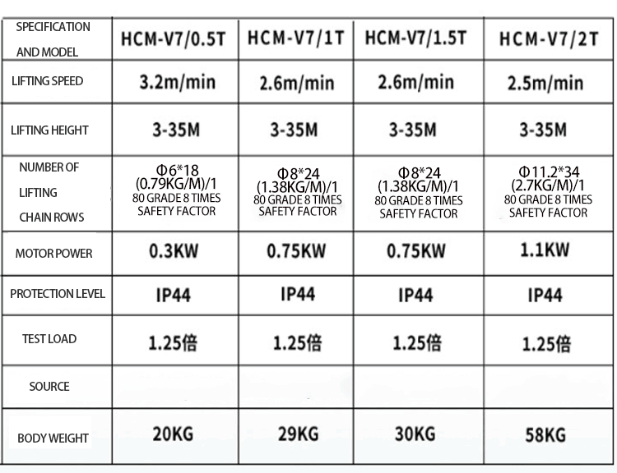

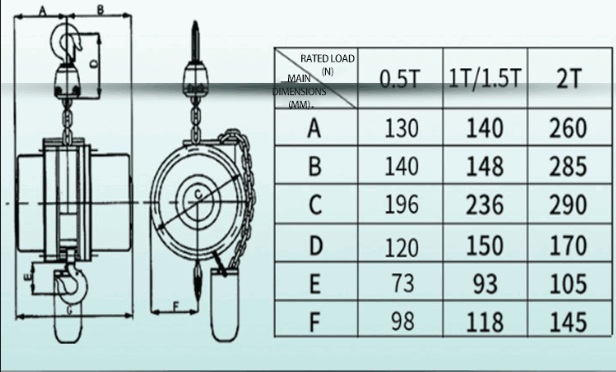

Stage electric hoist parameter 1
