Electric hoists represent their own machinery, strength, and toughness, while the stage is elegant, flowing, and soft, with conflicts and collisions between the two.
Why is the stage chain electric hoist suitable for stage lifting operations
Category : V7 Stage Electric Series
Get a QuoteProduct Details
Why is the stage chain electric hoist suitable for stage lifting operations
In fact, the stage chain electric hoist is not far from our lives. Whenever we go to a concert where we like celebrities, we need to use the stage electric hoist. It is designed and made according to the requirements on stage, and it has the characteristics of fast lifting, smooth operation, light weight, and low noise.

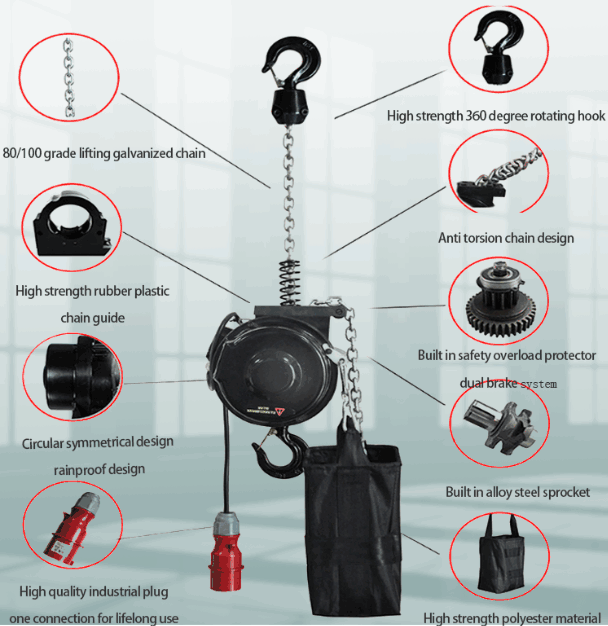

Features of the electric hoist on the Komei stage:
1: Efficient, lightweight motor, asbestos free brake system, low energy consumption.
2: Stamped steel shell, lightweight and sturdy.
3: High strength safety hook, capable of withstanding unexpected overload impacts without breaking, and will only gradually deform when overweight.
4: Lightweight, beautiful, and durable plastic chain bags.
5: Limit switch: There is a limit switch device on both the upper and lower parts of the crane to automatically stop the motor, prevent the chain from exceeding, and ensure safety.
6: Steel guide chain plates formed by heat treatment.
7: Easy to operate and maintain.
8: Designed for both forward and reverse directions and all-weather use.
9: Equipped with adjustable spiral limit switches for higher reliability and performance.
10: The chain is galvanized to prevent rusting.
11: Lubricating grease is installed in the gearbox to prevent oil droplets from penetrating the stage.
12. The motor of the gourd is sealed inside an aluminum steel ring cylindrical shell, permanently protecting the motor.
13: Suitable for connecting to various controllers and circuit distributors.
Stage control box, capable of single/centralized control of stage electric hoists. When controlling multiple stage electric hoists simultaneously, it can perform position memory; And it runs repeatedly according to the memory position, containing a user-defined ten field position memory function. There is an emergency stop button on the control panel to achieve emergency parking in special situations. The control panel is composed of switch keys and other display components.
The stage specific electric hoist belongs to the chain type electric hoist, also known as a hoist. The stage electric hoist is strictly designed and manufactured in accordance with the requirements of touring performances and exhibitions, with a black paint treatment on the surface, long-lasting brightness, and a 110 volt control circuit heat treatment. The formed steel guide chain plate is designed for both forward and reverse directions and all-weather use. It is equipped with an adjustable spiral limit switch, which has higher reliability performance. The chain is galvanized and not easy to rust. Lubricating grease is installed in the gearbox to prevent oil droplets from penetrating the stage. The hoist's motor is sealed in an aluminum steel ring cylindrical shell, which is suitable for connecting with various controllers and circuit distributors. The motor is long-lasting and is suitable for connection with various controllers and circuit distributors
