Electric hoists represent their own machinery, strength, and toughness, while the stage is elegant, flowing, and soft, with conflicts and collisions between the two.

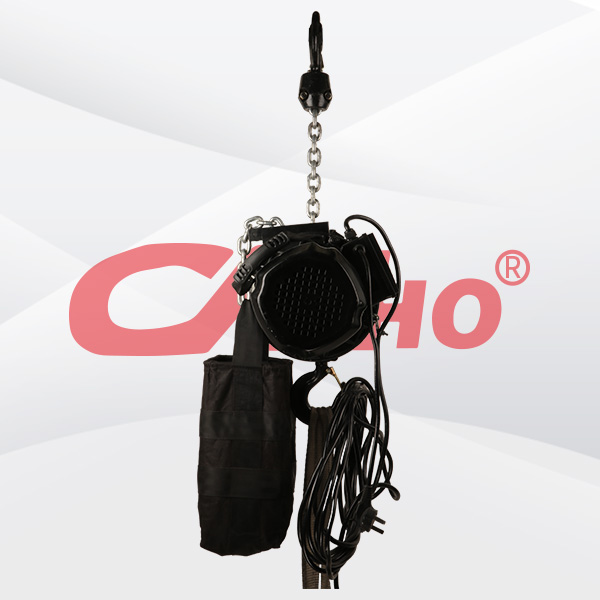

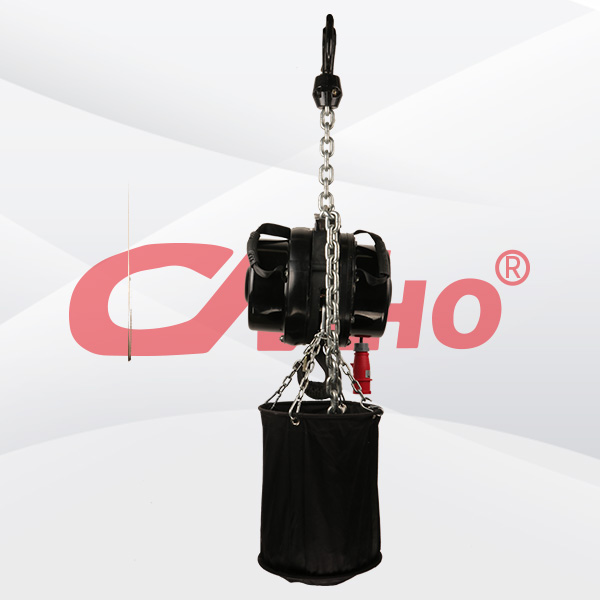

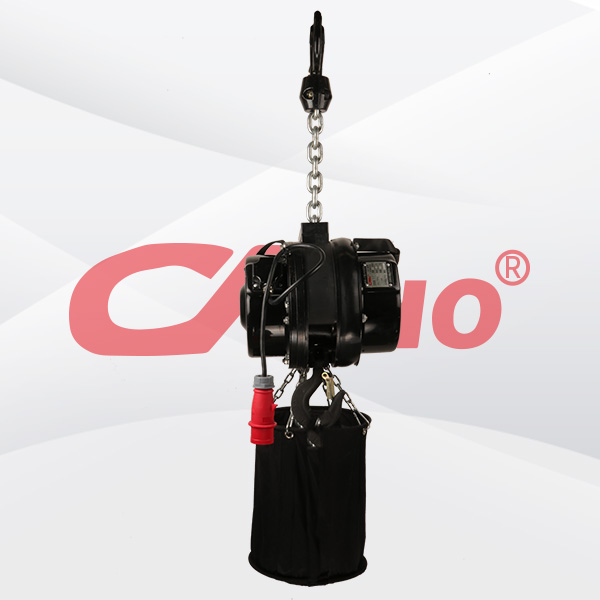

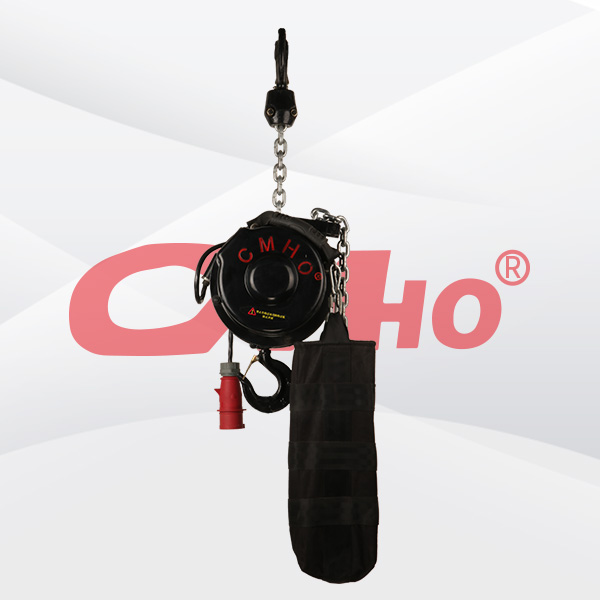

V7 Product parameters
Category : V7 Stage Electric Series
Get a Quote
Product Details
V7 Product parameters
| TYPE | 0.5T | 1T | 1.5T | 2T |
| Lifting speed | 3.2m/min | 2.6m/min | 2.6m/min | 2.5m/min |
| Lifting height | 3-35M | 3-35M | 3-35M | 3-35M |
| Lifting chains/Falls | Φ 6 * 18 (0.79KG/M)/1 80 level 8 times safety factor | Φ 6 * 18 (0.79KG/M)/1 80 level 8 times safety factor | Φ 6 * 18 (0.79KG/M)/1 80 level 8 times safety factor | Φ 6 * 18 (0.79KG/M)/1 80 level 8 times safety factor |
| Motor power | 0.3KW | 0.75KW | 0.75KW | 1.1KW |
| Protection level | IP44 | IP44 | IP44 | IP44 |
| Test load | 1.25x | 1.25x | 1.25x | 1.25x |
| source | 3phase 380V/50HZ | 3phase 380V/50HZ | 3phase 380V/50HZ | 3phase 380V/50HZ |
| Body weight | 20KG | 29KG | 30KG | 58KG |
Main dimensions/rated load | 0.5T | 1T/1.5T | 2T |
| A | 130 | 140 | 260 |
| B | 140 | 148 | 285 |
| C | 196 | 236 | 290 |
| D | 120 | 150 | 170 |
| E | 73 | 93 | 105 |
| F | 98 | 118 | 145 |
