What are the practical characteristics and special industry standards of lifting belts?

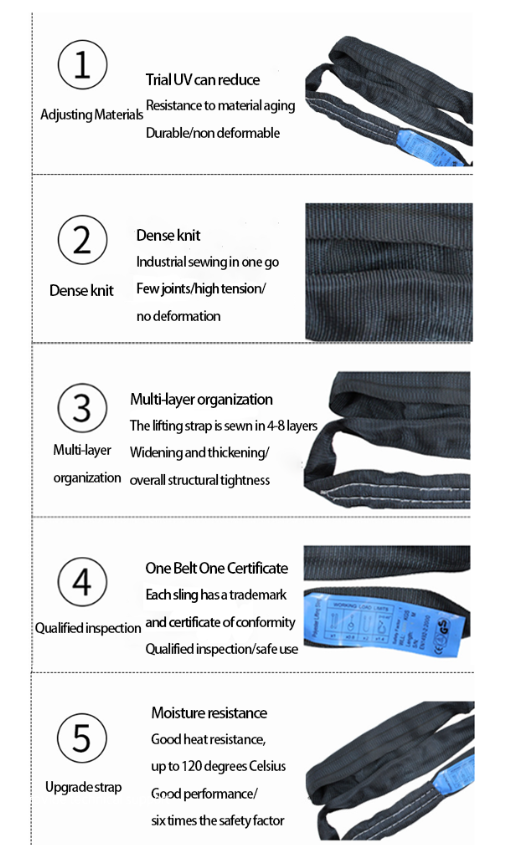

1. Suitable for lifting circular objects
2. High strength and weight
3. There are many lifting methods for flexible lifting belts, and the lifting belts are evenly stressed, which makes the working life of the lifting belts longer
4. There are many lifting methods, which can also be used to drag the lifted object
5. Additional anti-wear and anti cutting protective sleeves are available
6. Non conductive, no risk of electric shock
7. Especially suitable for lifting circular objects
8. The outer surface of the flexible lifting belt is fine, smooth objects will not cause damage, and it will not cause damage to vulnerable objects
9. Lightweight and soft, easy to use even in small spaces
10. Heavy load of 0.5-500 tons, effective length of 0.5-80 meters
11. Complies with Chinese industry standard JB/T8521-2007
12. The elastic elongation of flexible lifting belts is relatively small, with a working load of<2% and a fracture load of<12%
13. Temperature range used -40 ℃ -180 ℃
14. Additional anti-wear and anti cutting protective sleeves are available
15. The safety factor ratio is 6:1
16. Equipped with unique labels, the well uses international standard colors to distinguish the load-bearing tonnage, making it easy to identify even if the lifting straps are damaged. The performance of flexible lifting straps is superior.
Attention: The external sleeve is not load-bearing and only provides protection. When in use, it is combined with the internal bearing core to become flat to provide safe and load-bearing grip, provide wear resistance, and extend service life.
